SS Horizontal floor drain Purus Sigyn 50 R
The Sigyn 50 R floor drain is a horizontal drain with a 50 mm sewer connection and can be installed in both wooden and concrete structures.
SS Horizontal floor drain Purus Sigyn 50 R
| Product code | 442355 |
|---|---|
| HVAC number | 3309148 |
| Package size | 1 pcs |
Product details

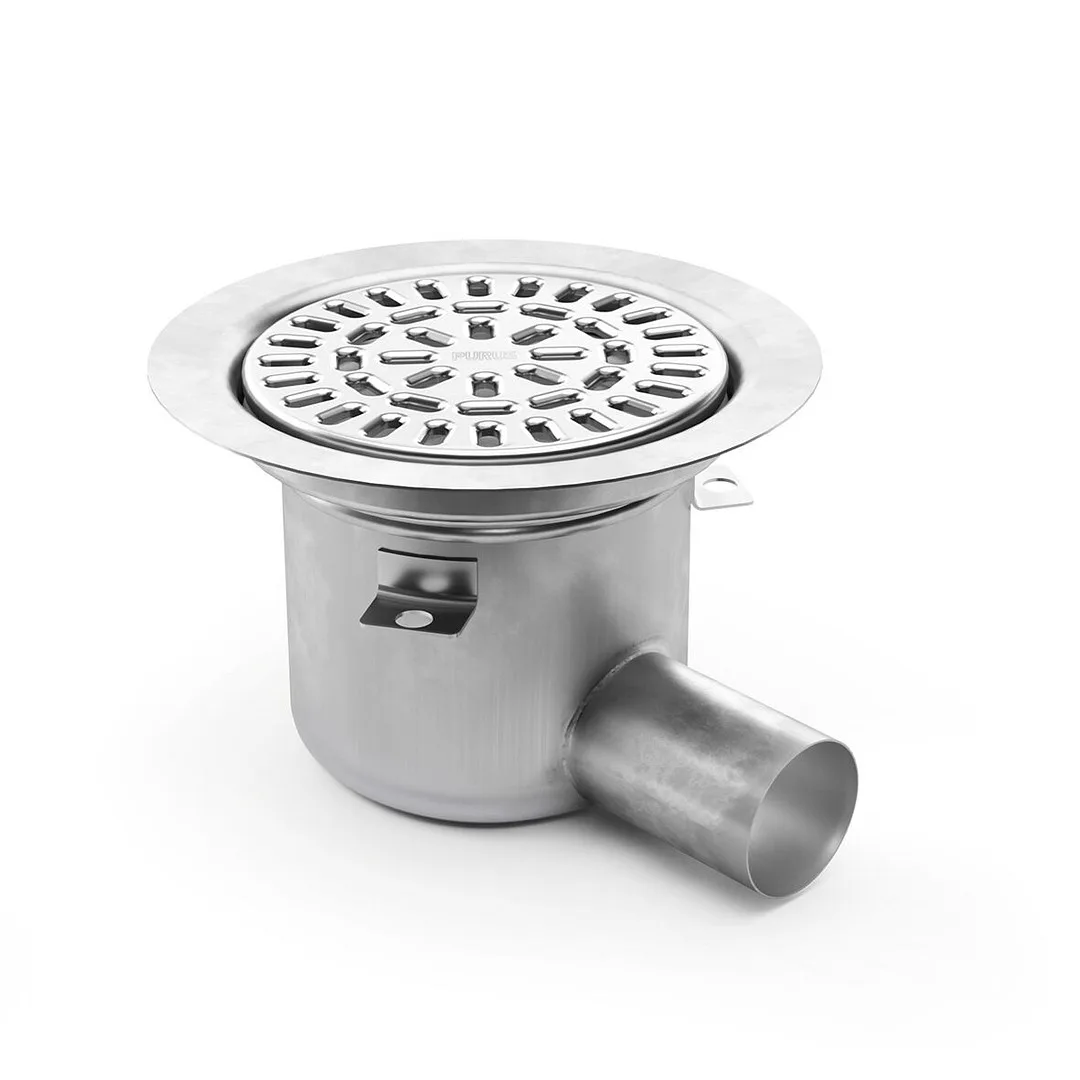

The Sigyn 50 R floor drain is a horizontal drain with a 50 mm sewer connection and can be installed in both wooden and concrete structures. The delivery includes a removable stainless-steel water trap, an automatic clamping ring, and a stainless-steel cover. The floor drain is equipped with a protective cover that shields the drain during casting.
The automatic clamping ring is used for connecting both waterproofing membranes and vinyl flooring to the drain. The self-adjusting clamping ring is suitable for vinyl flooring with a thickness of 1.5 mm–2 mm.
Floor coverings: Concrete / screed / tile / vinyl flooring
Durable, long-lasting material. Good chemical resistance. Good corrosion resistance. Rat/pest resistant. Recyclable material. Removable water trap.
| Sales unit | pcs |
|---|---|
| Usage unit | pcs |
| Conversion factor | 1 |
| Length of the sales unit (mm) | 240 |
|---|---|
| Width of the sales unit (mm) | 205 |
| Height of the sales unit (mm) | 135 |
| Weight of the sales unit (kg) | 1.400 |
