SS Vertical floor drain Purus Heavy 110 R
The Heavy 110 R floor drain is a vertical drain with a 110 mm pipe connection that can be installed in a concrete structure.
SS Vertical floor drain Purus Heavy 110 R
| Product code | 442375 |
|---|---|
| HVAC number | 3309120 |
| Package size | 1 pcs |
Product details

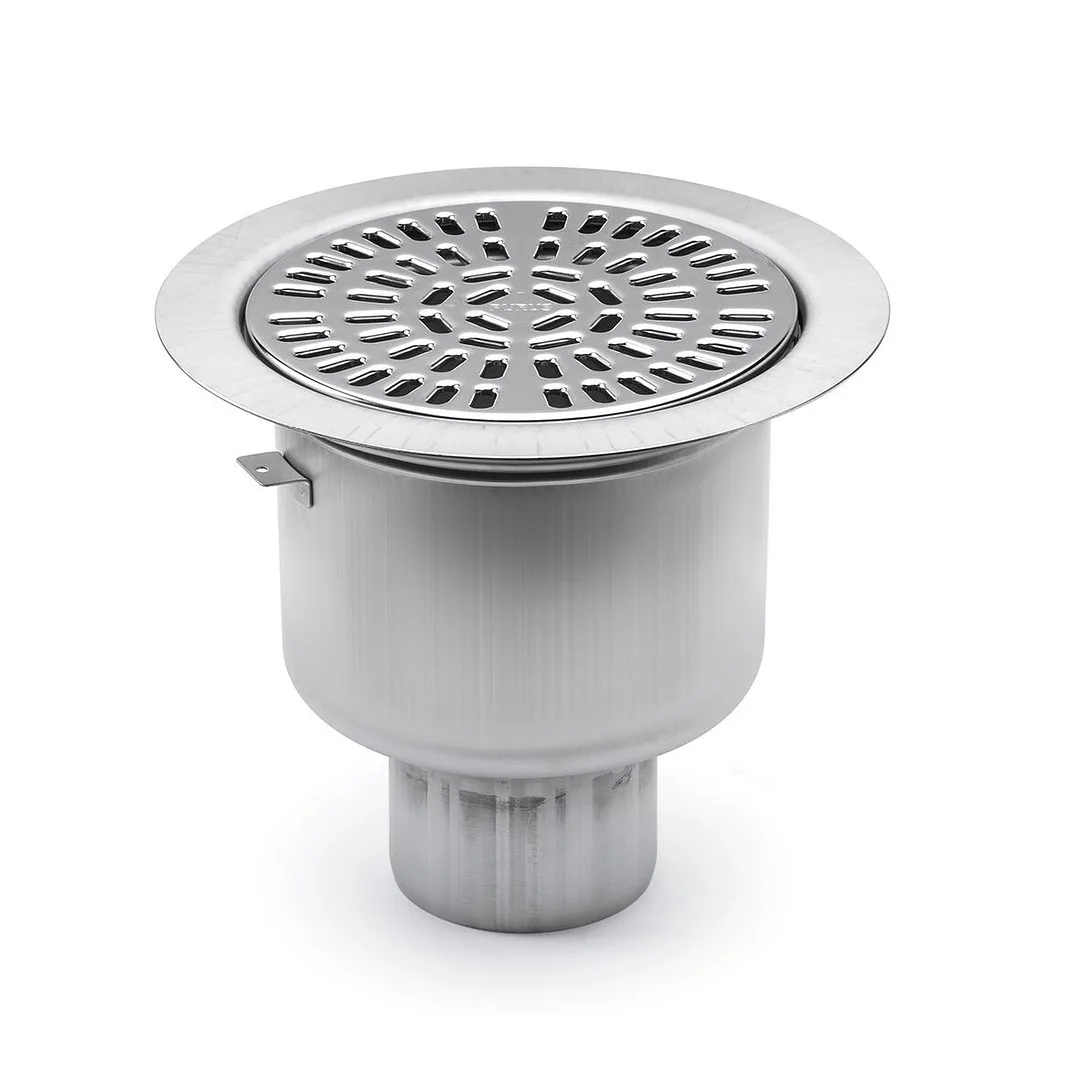

The Heavy 110 R floor drain is a vertical drain with a 110 mm pipe connection that can be installed in a concrete structure. The delivery includes: a removable HST water trap, an automatic tightening ring, and a stainless steel cover. The floor drain is equipped with a protective cover that protects the drain during casting.
The automatic tightening ring is used for both waterproofing and connecting a plastic mat to the drain. The self-adjusting tightening ring is suitable for plastic mats with a thickness of 1.5 mm – 2 mm.
Floor covering: Concrete/mortar/tile/plastic mat
Durable, long-lasting material. Good chemical resistance. Excellent corrosion resistance. Resistant to rats and pests. Recyclable material. Removable water trap.
| Sales unit | pcs |
|---|---|
| Usage unit | pcs |
| Conversion factor | 1 |
| Length of the sales unit (mm) | 310 |
|---|---|
| Width of the sales unit (mm) | 305 |
| Height of the sales unit (mm) | 300 |
| Weight of the sales unit (kg) | 3.700 |
