Drip tray QsanTec type L HADT96-K, black

The tray is installed hanging from the support brackets of the wall or ground stand, where rubber pads are also fitted.
After that, the brackets are locked in place with the supplied screws.
The drain pipe is connected to the outlet located at the bottom left rear corner, where a threaded nipple is installed.
From the nipple, the piping continues using a 32×2 mm pipe, and at the same time the heating cable is inserted into the pipe.
The heating cable is approximately 2 meters long and has a power output of 25 W/m.
Make sure to install sufficient slope in the piping to ensure proper drainage.

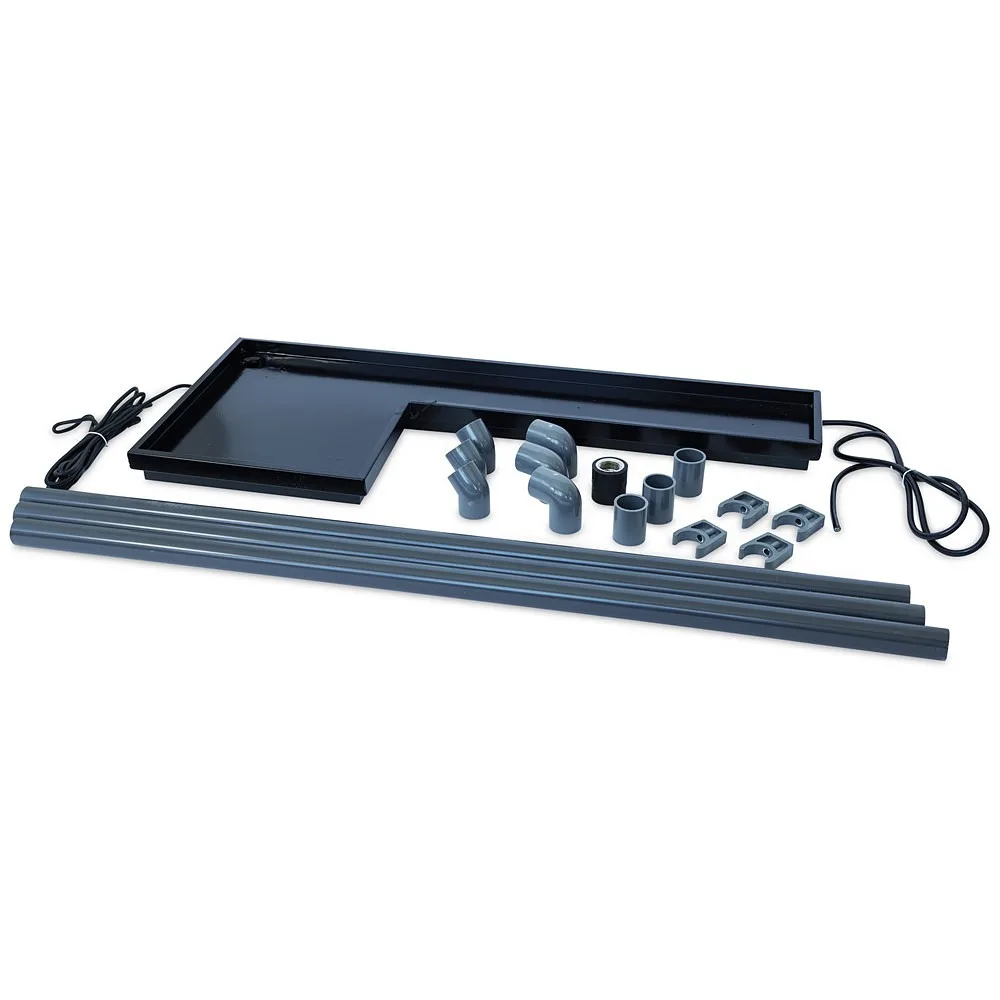

The installation kit includes several elbows, a coupling, brackets, and 2 x 1-meter pipes.
Use PVC glue for all joints.
The tray is equipped with a built-in thermostat that controls both the base heating and the drain pipe heating.
The heating switches on at +3°C and switches off at +8°C.
