Drip tray QsanTec type “L” HADT97-K, black

The drip tray is mounted hanging from the support brackets of the wall or ground stand, where rubber pads are also installed.
After that, the brackets are locked in place using the supplied screws.
The drain pipe is connected to the outlet located at the bottom left rear corner, where a threaded nipple is attached.
From there, the piping continues with a 32×2 mm pipe, and at the same time the heating cable is inserted into the pipe.
The heating cable is approximately 2 meters long, with a power of 25 W/m.
Remember to install sufficient slope in the piping for proper drainage.

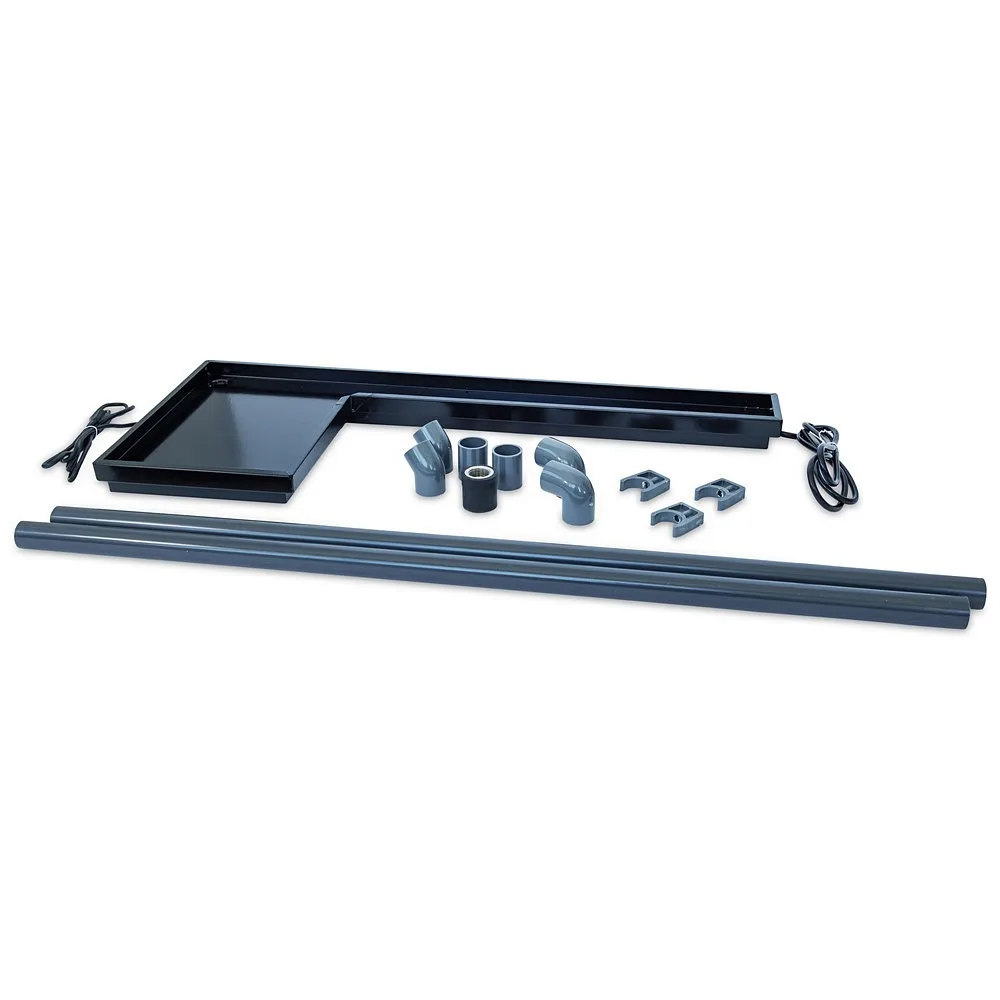

The installation kit includes several elbows, a coupling, brackets, and 2 x 1-meter pipes.
Use PVC glue for all connections.
The tray is equipped with a built-in thermostat that controls both the base heating and the drain pipe heating.
The heating switches on at +3°C and off at +8°C.
