WC unit GB wall Triomont XS

Product code 475745
HVAC number 5752491
pcs
Available from the central warehouse
Jyväskylä
Espoo
Tuusula
Kempele
Kaivoksela
Tampere
Kuopio
Helsinki
Turku
Seinäjoki
Sipoo

Product details

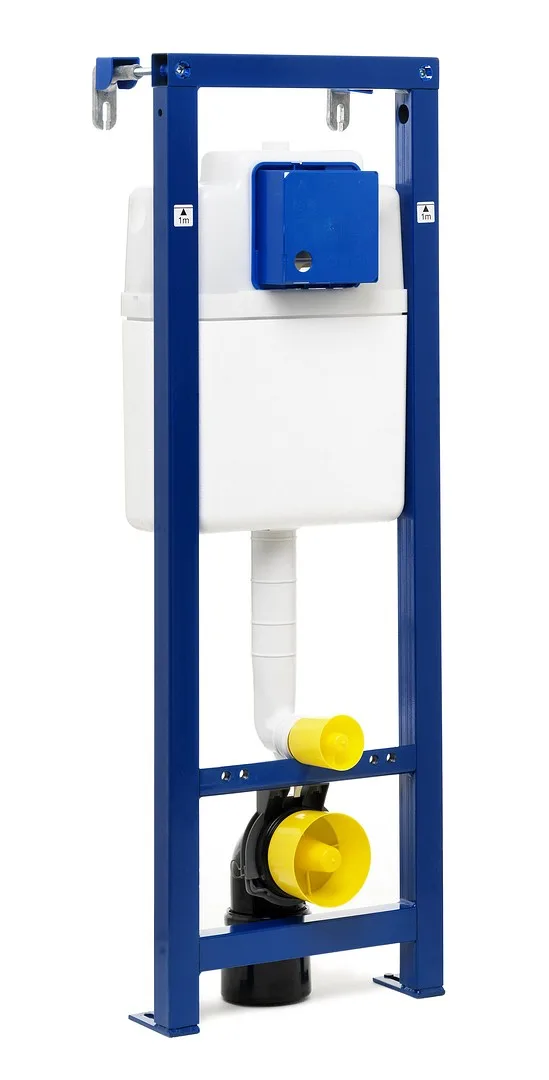

Space-efficient WC frame, only 380 mm wide. Suitable for installation against flat walls or in corners. Supplied with upper and lower wall brackets – no floor bolting required. Reversible bracket allows flexible wall attachment. Designed for use with mechanical XS flush plates – wide selection of single and dual flush options. Adjustable seat height from 410 to 610 mm. Mounting hole spacing 180 or 230 mm. Compatible with all CE-marked wall-hung WC pans. SINTEF-certified steel frame, load-tested up to 400 kg. Fits both wall and floor waste connections. Suitable for AMA installation without additional components (SE).

Sales unit pcs
Usage unit pcs
Customs tariff number 84818099
Conversion factor 1
Length of the sales unit (mm) 1152
Width of the sales unit (mm) 395
Height of the sales unit (mm) 145
Weight of the sales unit (kg) 0.000
Installation instructions
Technical specifications
