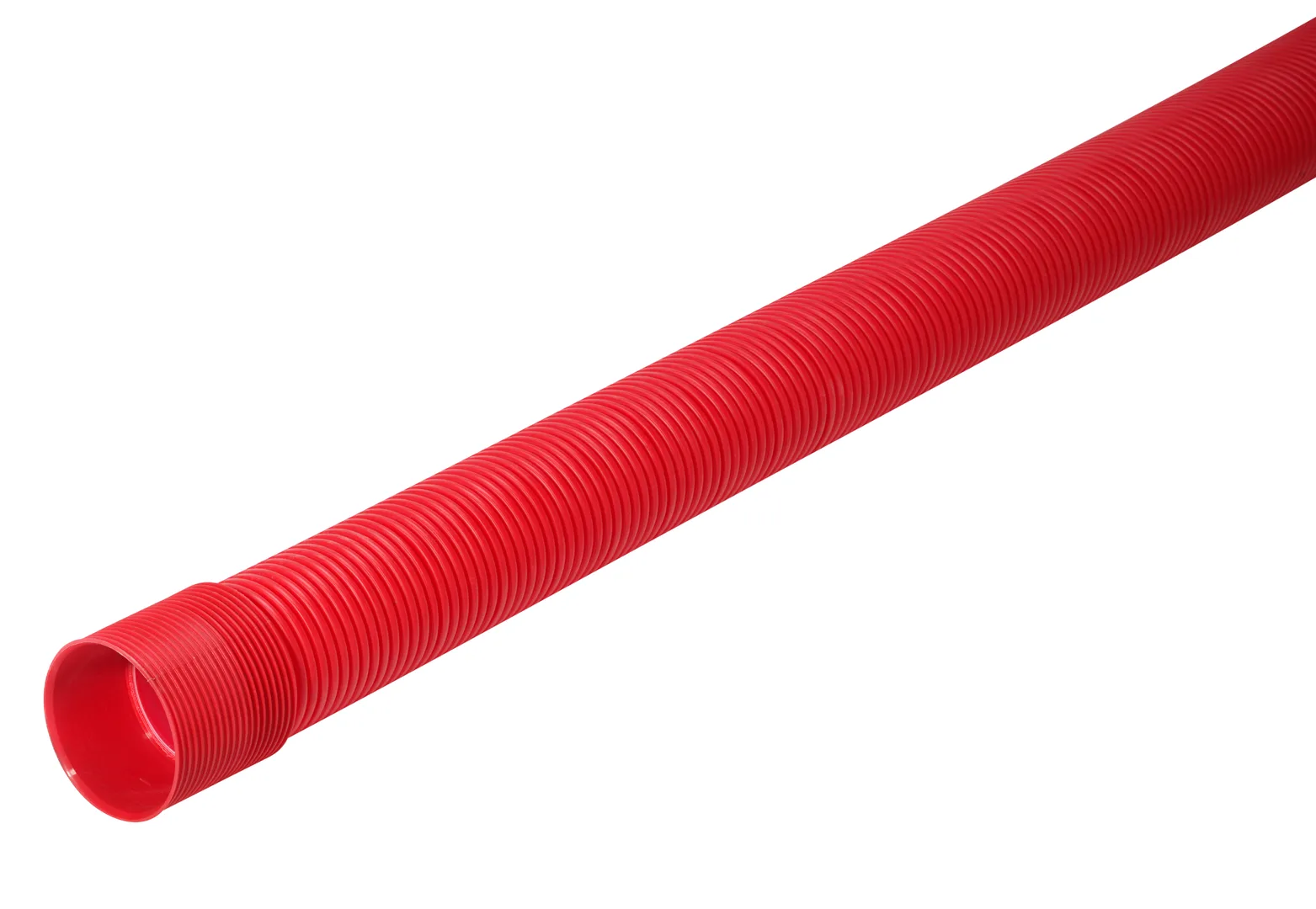

TEL A cable protection pipe SN16 red
Double-layered cable protection pipe for underground phone, telecommunication, and data communication cables in heavily trafficked areas
Product options
TEL A cable protection pipe 75mm x 6m SN16 red
| Product code | 133228 |
|---|---|
| Package size | 56 pcs |
TEL A cable protection pipe 110mm x 6m SN16 red
| Product code | 133225 |
|---|---|
| HVAC number | 9412504 |
| Package size | 50 pcs |
TEL A cable protection pipe 160mm x 6m SN16 red
| Product code | 133230 |
|---|---|
| HVAC number | 9412505 |
| Package size | 26 pcs |
Product details
Double-layered cable protection pipe for underground phone, telecommunication, and data communication cables in heavily trafficked areas
MELTEX double cable protection pipe is a so-called double-layer pipe with a corrugated outer surface and a smooth inner surface. TEL A, or SN16 class pipe, is suitable for ground installations and sand-sheathed ducts in heavy traffic areas as well as for road and street crossings. The TEL A double pipe has a ring stiffness of SN ≥ 16 kN/m2, with a maximum installation depth of 6.0 m. The pipe is equipped with a sealing ring. Signal color is red, and the intended use is for phone, telecommunication, and data communication
The double-layer cable protection pipe meets the technical requirements of standard SFS 5608
| Usage length | 6 m |
|---|---|
| Material | polyethylene |
| Ring stiffness | SN16 |
| Color | red |
| External surface color | red |
| Internal surface color | red |
| Usage unit | m |
| Customs tariff number | 39172110 |
| ETIM group | EG000002 |
| Conversion factor | 6 |
| ETIM class | EC000253 |
| Building 2000 class | 147 |
| Package type | frame |
|---|
