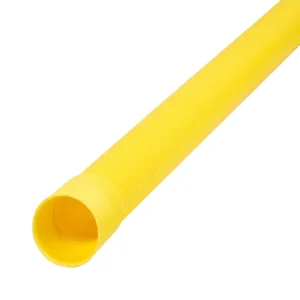

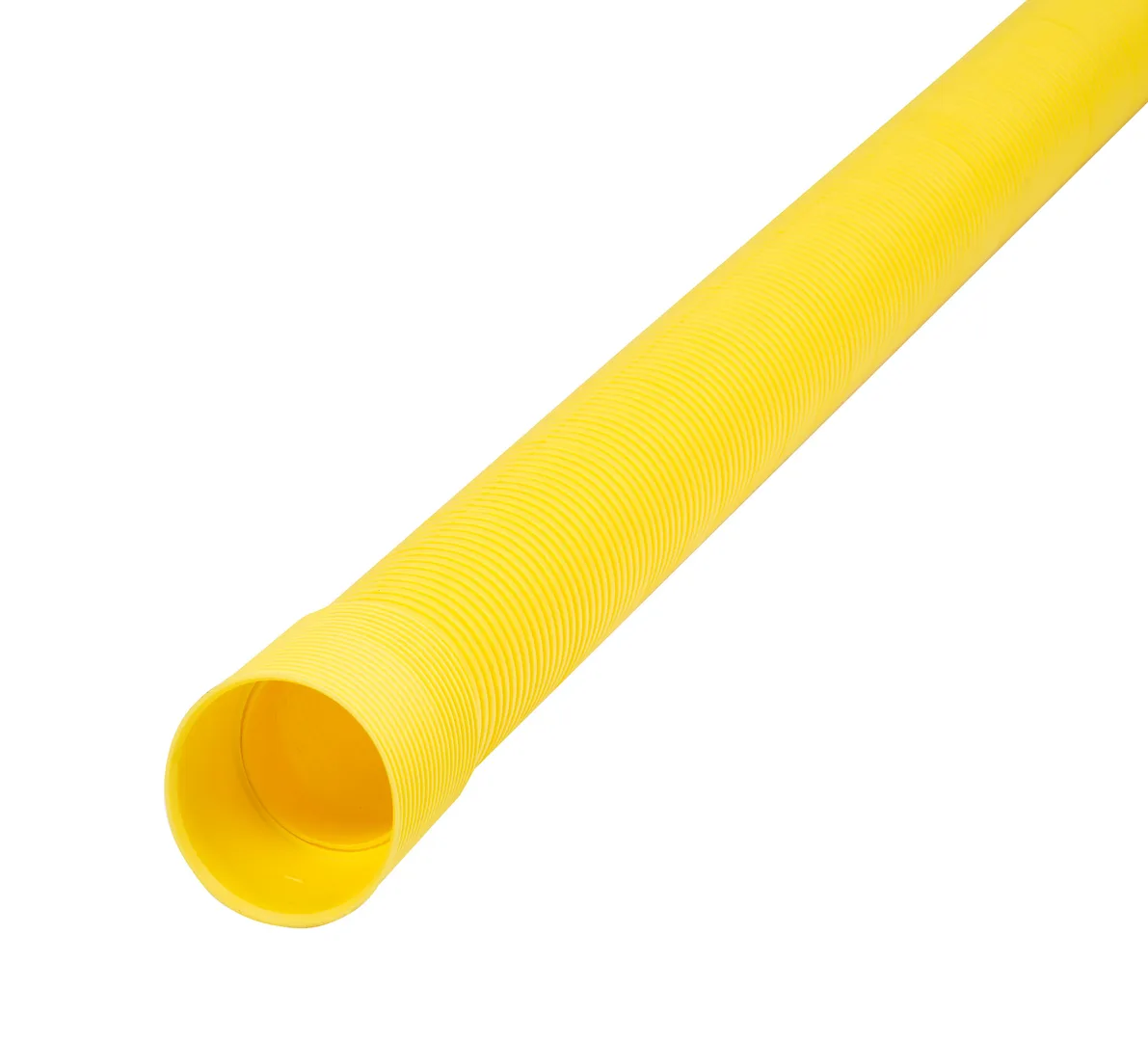

TEL A cable protection pipe SN16 yellow
Double-layered cable protection pipe for underground electrical cables in heavily trafficked areas
Product options
TEL A cable protection pipe 75mm x 6m SN16 yellow
| Product code | 133200 |
|---|---|
| HVAC number | 9412500 |
| Package size | 56 pcs |
TEL A cable protection pipe 110mm x 6m SN16 yellow
| Product code | 133205 |
|---|---|
| HVAC number | 9412501 |
| Package size | 50 pcs |
TEL A cable protection pipe 140mm x 6m SN16 yellow
| Product code | 133210 |
|---|---|
| HVAC number | 9412502 |
| Package size | 30 pcs |
TEL A cable protection pipe 160mm x 6m SN16 yellow
| Product code | 133215 |
|---|---|
| HVAC number | 9412503 |
| Package size | 26 pcs |
TEL A cable protection pipe 200mm x 6m SN16 yellow
| Product code | 133216 |
|---|---|
| Package size | 18 pcs |
Product details
Dubbelskikts kabelskyddsrör uppfyller de tekniska kraven i standarden SFS 5608
Double-layered cable protection pipe for underground electrical cables in heavily trafficked areas
MELTEX double cable protection pipe is a so-called double-layer pipe with a corrugated outer surface and a smooth inner surface. TEL A, or SN16 class pipe, is suitable for ground installations and sand-sheathed ducts in heavy traffic areas as well as for road and street crossings. The TEL A double pipe has a ring stiffness of SN ≥ 16 kN/m2, with a maximum installation depth of 6.0 m. The pipe is equipped with a sealing ring. Signal color is yellow, and the intended use is for electrical installations
The double-layer cable protection pipe meets the technical requirements of standard SFS 5608
| Usage length | 6 m |
|---|---|
| Material | polyethylene |
| Ring stiffness | SN16 |
| Color | yellow |
| External surface color | yellow |
| Internal surface color | yellow |
| Usage unit | m |
| Customs tariff number | 39172110 |
| ETIM group | EG000002 |
| Conversion factor | 6 |
| ETIM class | EC000253 |
| Building 2000 class | 147 |
| Package type | frame |
|---|
