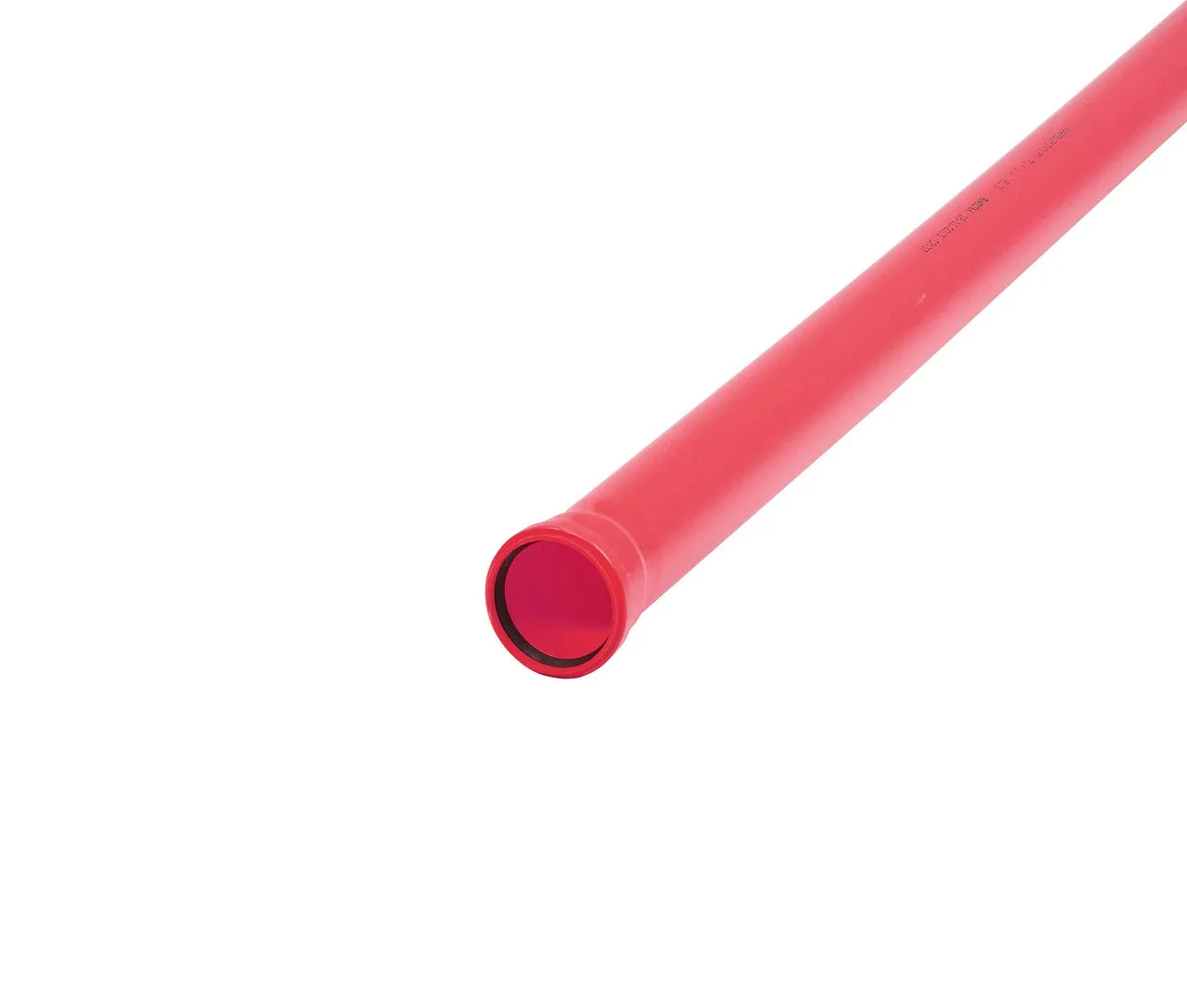

TEL B cable protection pipe SN8 red
Triple-layered cable protection pipe for underground phone, telecommunication, and data communication cables in lighter trafficked areas
Product options
TEL B cable protection pipe 110mm x 6m SN8 red
| Product code | 133311 |
|---|---|
| HVAC number | 9412540 |
| Package size | 50 pcs |
TEL B cable protection pipe 140mm x 6m SN8 red
| Product code | 133312 |
|---|---|
| HVAC number | 9412541 |
| Package size | 30 pcs |
TEL B cable protection pipe 160mm x 6m SN8 red
| Product code | 133313 |
|---|---|
| HVAC number | 9412542 |
| Package size | 26 pcs |
Product details
Triple-layered cable protection pipe for underground phone, telecommunication, and data communication cables in lighter trafficked areas
MELTEX triple cable protection pipe is a so-called triple-layer pipe with smooth surfaces on both the outside and inside. TEL B, or SN8 class pipe, is suitable for concrete-sheathed ducts and ground installations outside heavy traffic areas. The TEL B triple pipe has a ring stiffness of SN ≥ 8 kN/m2, with a maximum installation depth of 6.0 m. The pipe is equipped with a sealing ring. Signal color is red, and the intended use is for phone, telecommunication, and data communication
The triple-layer cable protection pipe meets the technical requirements of standard SFS 5608
| Usage length | 6 m |
|---|---|
| Material | polyethylene |
| Ring stiffness | SN8 |
| Color | red |
| External surface color | red |
| Internal surface color | red |
| Usage unit | m |
| Customs tariff number | 39172110 |
| ETIM group | EG000002 |
| Conversion factor | 6 |
| ETIM class | EC000253 |
| Building 2000 class | 147 |
| Package type | frame |
|---|
