TEL B cable protection pipe SN8 yellow
Double-layered cable protection pipe for underground electrical cables in lighter trafficked areas
Product options
TEL B cable protection pipe 110mm x 6m SN8 yellow
| Product code | 133255 |
|---|---|
| HVAC number | 9412507 |
| Package size | 50 pcs |
TEL B cable protection pipe 140mm x 6m SN8 yellow
| Product code | 133260 |
|---|---|
| HVAC number | 9412508 |
| Package size | 30 pcs |
TEL B cable protection pipe 160mm x 6m SN8 yellow
| Product code | 133265 |
|---|---|
| HVAC number | 9412509 |
| Package size | 26 pcs |
TEL B cable protection pipe 75 x 6m SN8 PE yellow
| Product code | 133270 |
|---|---|
| HVAC number | 9412544 |
| Package size | 56 pcs |
Product details
Double-layered cable protection pipe for underground electrical cables in lighter trafficked areas

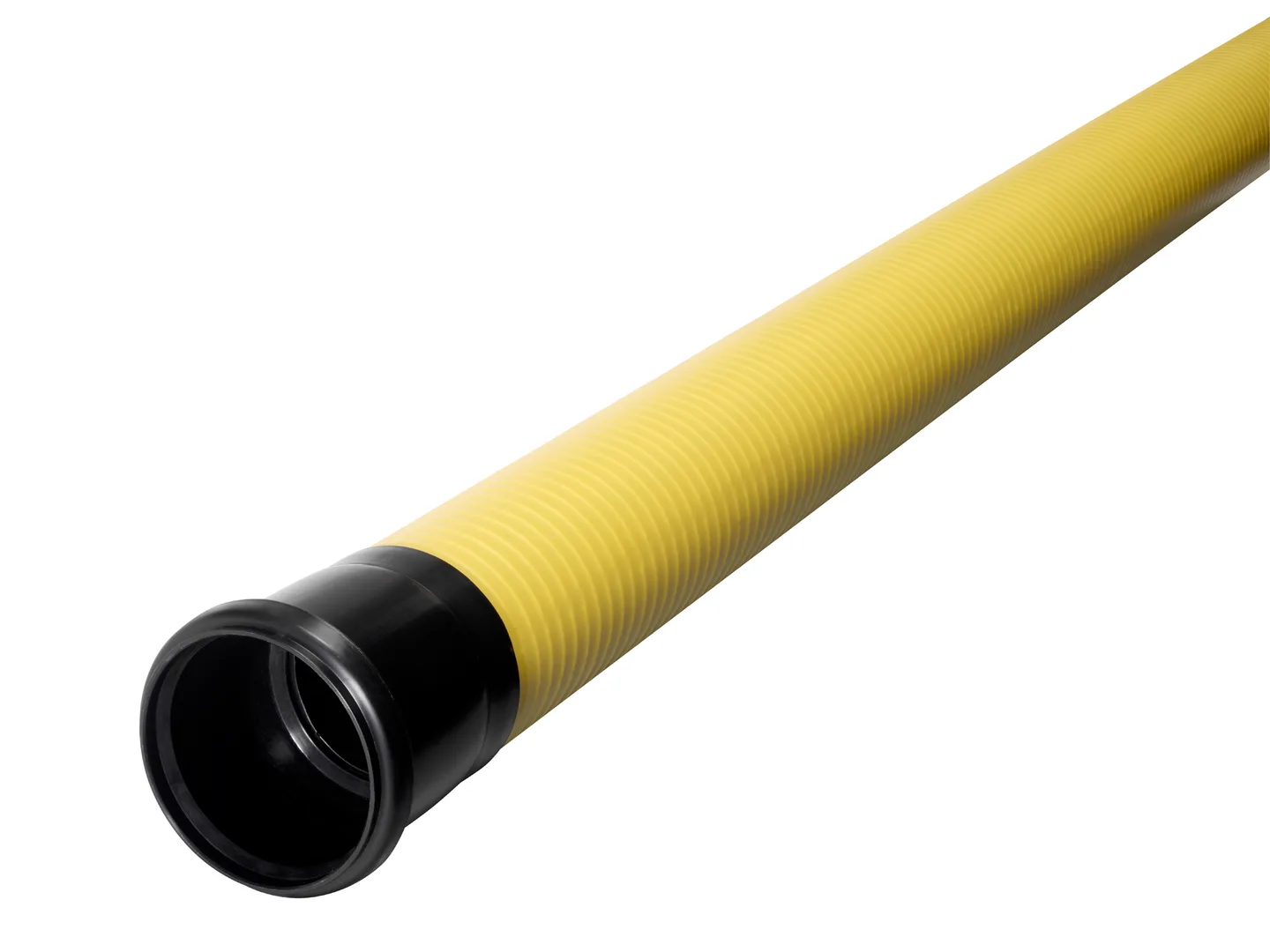

MELTEX double cable protection pipe is a so-called double-layer pipe with a corrugated outer surface and a smooth inner surface. TEL B, or SN8 class pipe, is suitable for concrete-sheathed ducts and ground installations outside heavy traffic areas. The TEL B double pipe has a ring stiffness of SN ≥ 8 kN/m2, with a maximum installation depth of 6.0 m. The pipe is equipped with a sealing ring. Signal color is yellow, and the intended use is for electrical installations
The double-layer cable protection pipe meets the technical requirements of standard SFS 5608
| Usage length | 6 m |
|---|---|
| Material | polyethylene |
| Ring stiffness | SN8 |
| Color | yellow |
| External surface color | yellow |
| Internal surface color | black |
| Usage unit | m |
| Customs tariff number | 39172110 |
| ETIM group | EG000002 |
| Conversion factor | 6 |
| ETIM class | EC000253 |
| Building 2000 class | 147 |
| Package type | frame |
|---|
