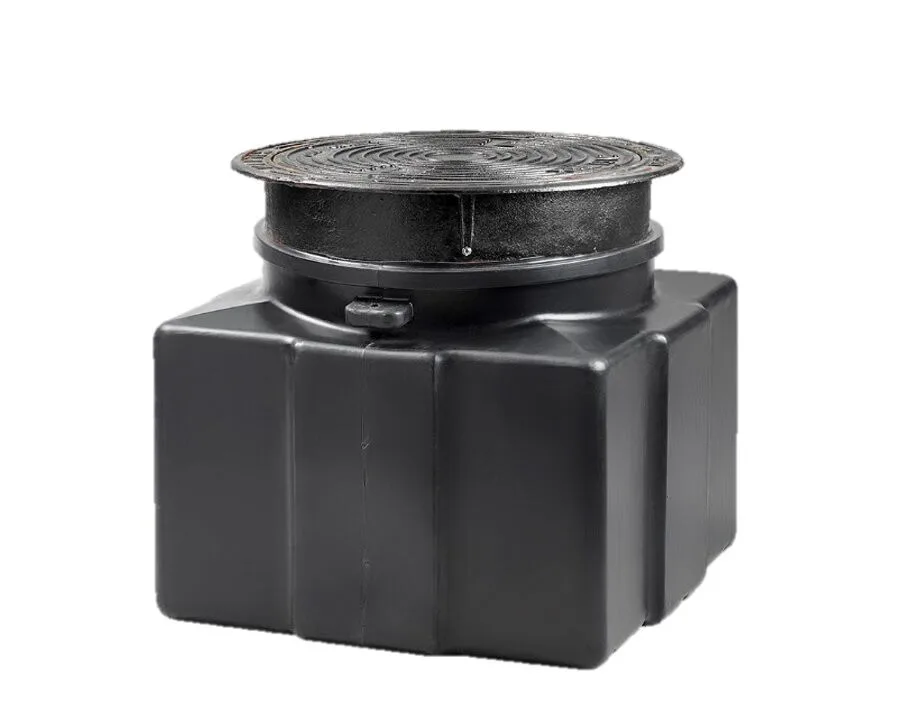

MX-Cable chamber 630mm iron cast cover

MX-Cable chamber 630mm iron cast cover

Cable well with a cast iron cover for implementing cable connections

Print product sheet

MX-Cable chamber 630mm iron cast cover

Product code 133410
HVAC number 9412530
pcs
Available from the central warehouse
Jyväskylä
Espoo
Tuusula
Kempele
Kaivoksela
Tampere
Kuopio
Helsinki
Turku
Seinäjoki
Sipoo
Available
Low stock
Out of stock

Product details

Cable well with a cast iron cover for implementing cable connections

The well is suitable for pipe sizes Ø 50 – 160 mm, and conduits can be made on all four sides. The wall thickness of the well is approximately 5 mm

The well includes a body with a telescopic seal, a manhole-sized 630 x 750 mm telescope with a cast iron frame, and a D400 solid cover. Various sizes of conduit gaskets are available separately for pipe conduits

Sales unit pcs
Size 630mm
Material polyethylene
Color black
Bottom outer diameter 800 mm
Bottom type closed
Body height 480 mm
Usage unit pcs
Customs tariff number 39172190
Conversion factor 1
Building 2000 class 147
Length of the sales unit (mm) 800
Width of the sales unit (mm) 800
Height of the sales unit (mm) 580
Weight of the sales unit (kg) 138.000
Package type pc
Brochures
DWG
  • 133410_DWG_MX-Kaapelikaivo 800-630mm valur.kansistolla.DWG (432 kt) Open Download
Technical drawings
