MX-Cable chamber 630mm plastic cover

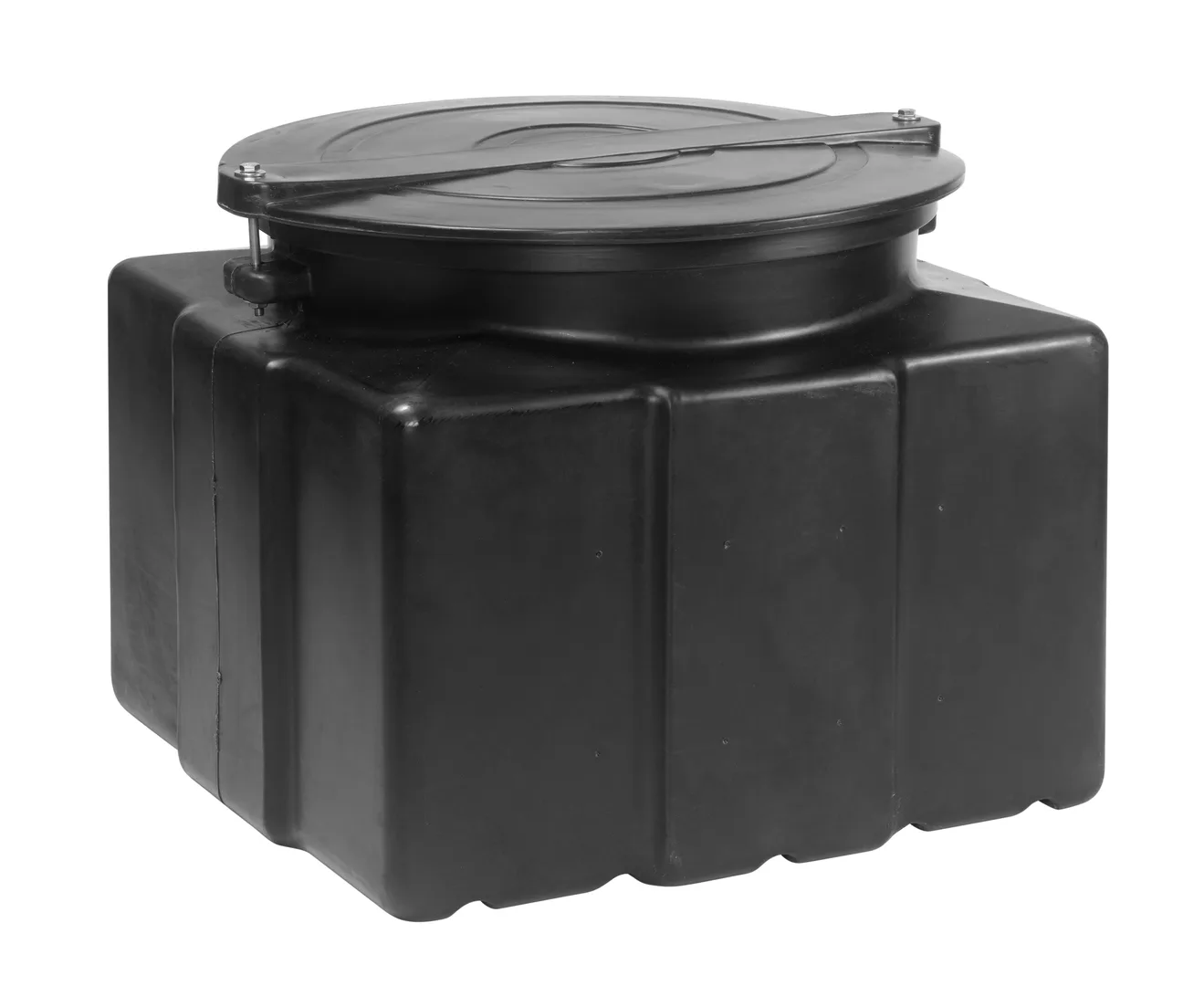

Cable well with a plastic cover for implementing cable connections

Print product sheet

MX-Cable chamber 630mm plastic cover

Product code 133405
HVAC number 9412529
pcs
Available from the central warehouse
Jyväskylä
Espoo
Tuusula
Kempele
Kaivoksela
Tampere
Kuopio
Helsinki
Turku
Seinäjoki
Sipoo
Available
Low stock
Out of stock

Product details

Cable well with a plastic cover for implementing cable connections

MELTEX cable well can be made completely sealed with the included sealing ring. The well is suitable for pipe sizes Ø 50 – 160 mm, and conduits can be made on all four sides. The wall thickness of the well is approximately 5 mm

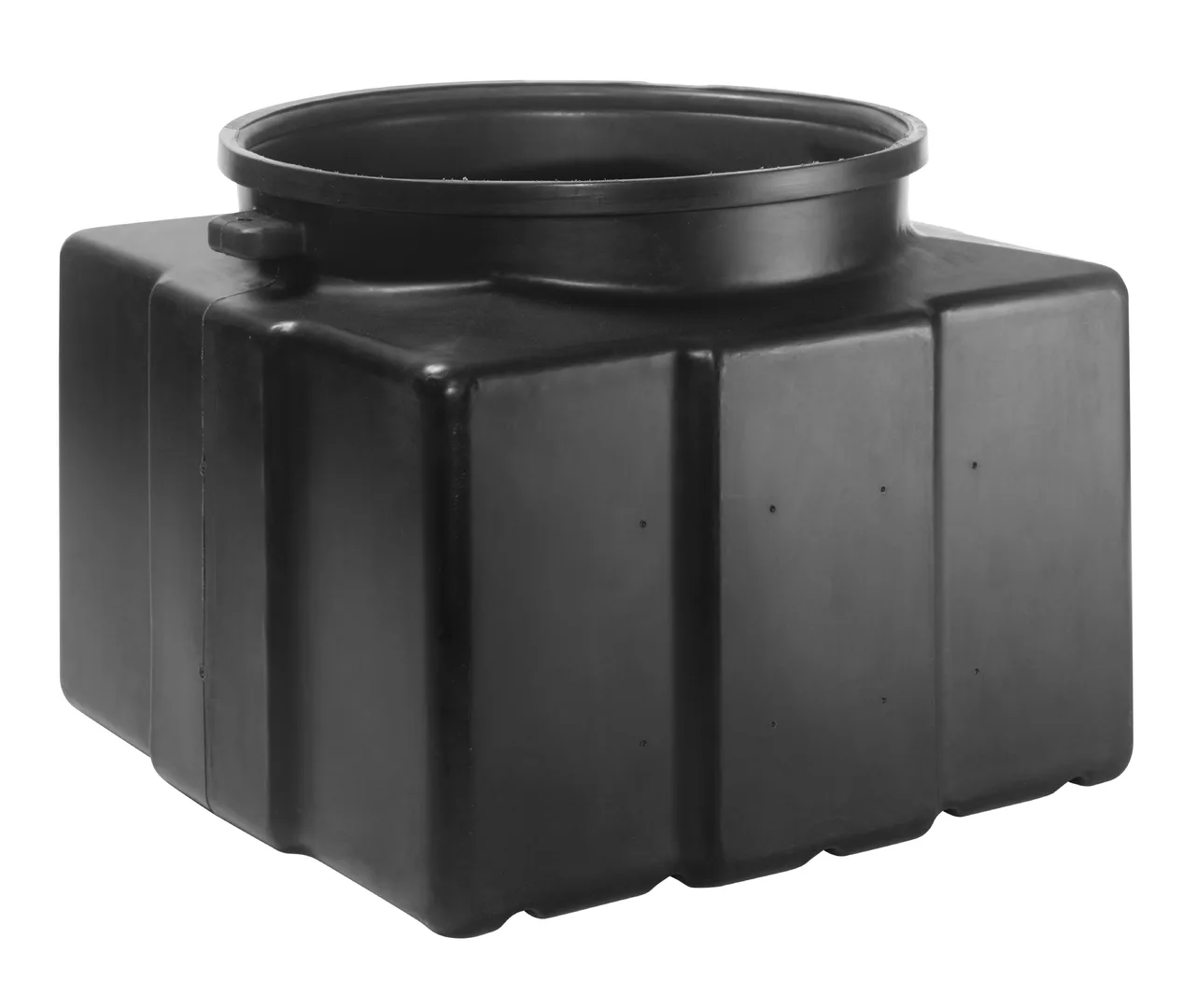

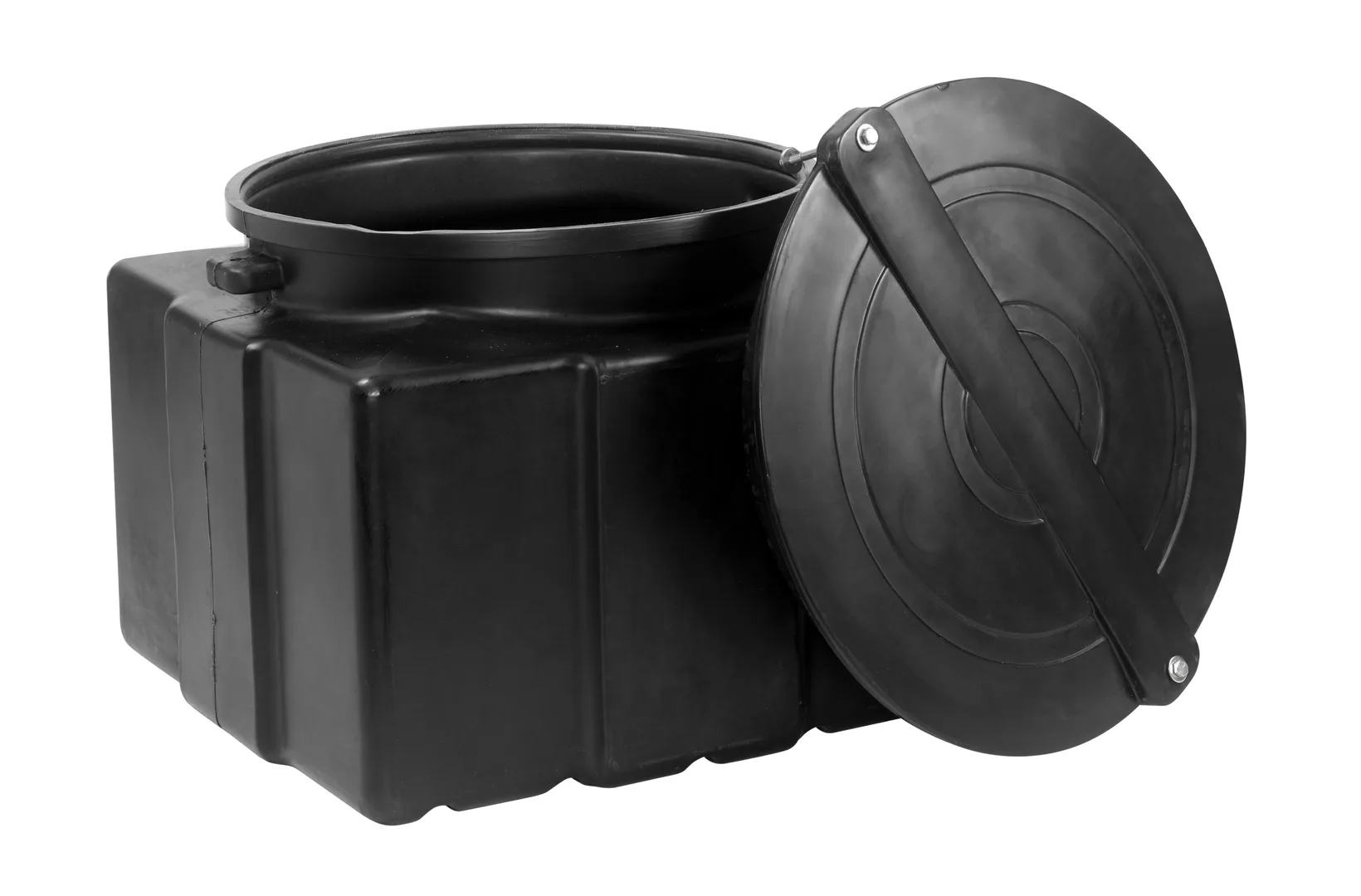

The well includes a body with a telescopic seal, a plastic cover, and locking bolts. For pipe conduits, various sizes of conduit gaskets are available separately

Sales unit pcs
Size 630mm
Material polyethylene
Color black
Bottom outer diameter 800 mm
Bottom type closed
Total height 600 mm
Body height 480 mm
Usage unit pcs
Customs tariff number 39172190
Conversion factor 1
Building 2000 class 147
Length of the sales unit (mm)
Width of the sales unit (mm)
Height of the sales unit (mm)
Weight of the sales unit (kg) 20.000
Package type pc
