Product options

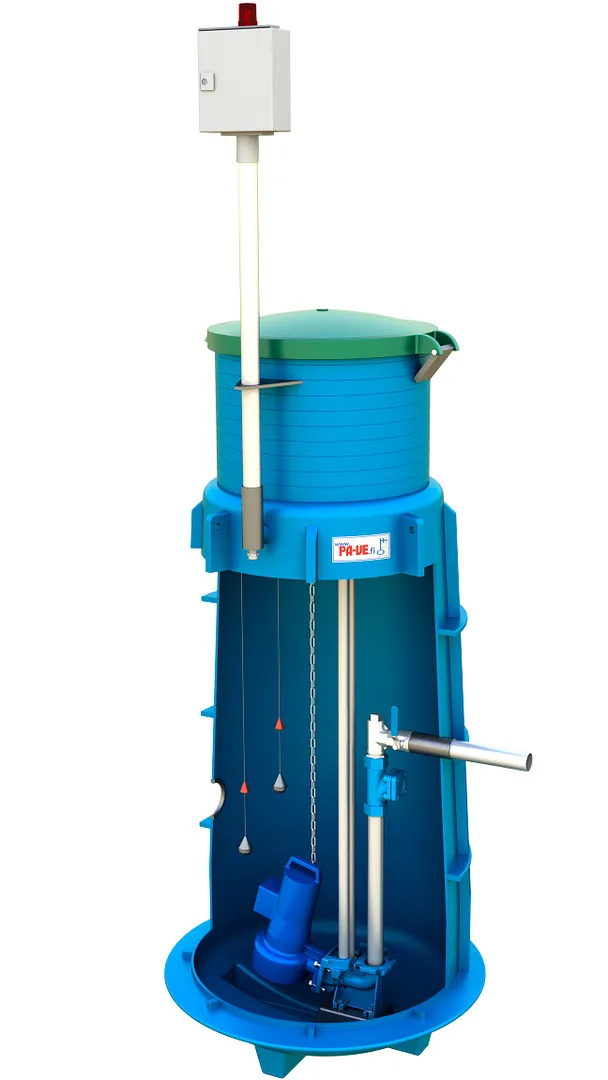

PAVE 1000 pumping station

PAVE 1000 pump frame with plastic cover

Product code 712202
Package size 1 pcs
pcs
Available from the central warehouse
Jyväskylä
Espoo
Tuusula
Kempele
Kaivoksela
Tampere
Kuopio
Helsinki
Turku
Seinäjoki
Sipoo
PAVE 1000 pump frame with telescopic ring

PAVE 1000 pump frame with telescopic ring

Product code 120920
pcs
Available from the central warehouse
Jyväskylä
Espoo
Tuusula
Kempele
Kaivoksela
Tampere
Kuopio
Helsinki
Turku
Seinäjoki
Sipoo

Product details

PA-VE pumping stations are suitable for use as both stormwater and groundwater pumping stations as well as wastewater pumping stations.

The PA-VE 1000 wastewater pumping station is suitable for properties in areas where gravity sewers cannot be used. The pumping station’s tank is manufactured using rotational molding technology from environmentally friendly and recyclable polyethylene, which is lightweight and durable. The pumping station is self-anchoring, eliminating the need for expensive base plates, making installation easy and cost-effective. The wastewater pumping station features a lockable and hinged plastic lid, allowing for smooth maintenance and installation work. The outlet connection size is DN40 / 1 1/2″ or DN50 / 2″.

Material polyethylene
Color blue
Usage unit pcs
Building 2000 class 613.22
Package type pc
DWG
  • pave1000_DWG_Jatevesipumppaamo PAVE 1000 PJ-1K3 DN40.DWG (442 kt) Open Download
  • pave1000_DWG2_Jatevesipumppaamo PAVE 1000 PJ-1K3 DN50.DWG (442 kt) Open Download
Declaration of performance
Installation instructions
  • pave1000_AO_PAVE-1000-Kiinteistopumppamo-asennusohje-2025.pdf (636 kt) Open Download
Technical drawings
