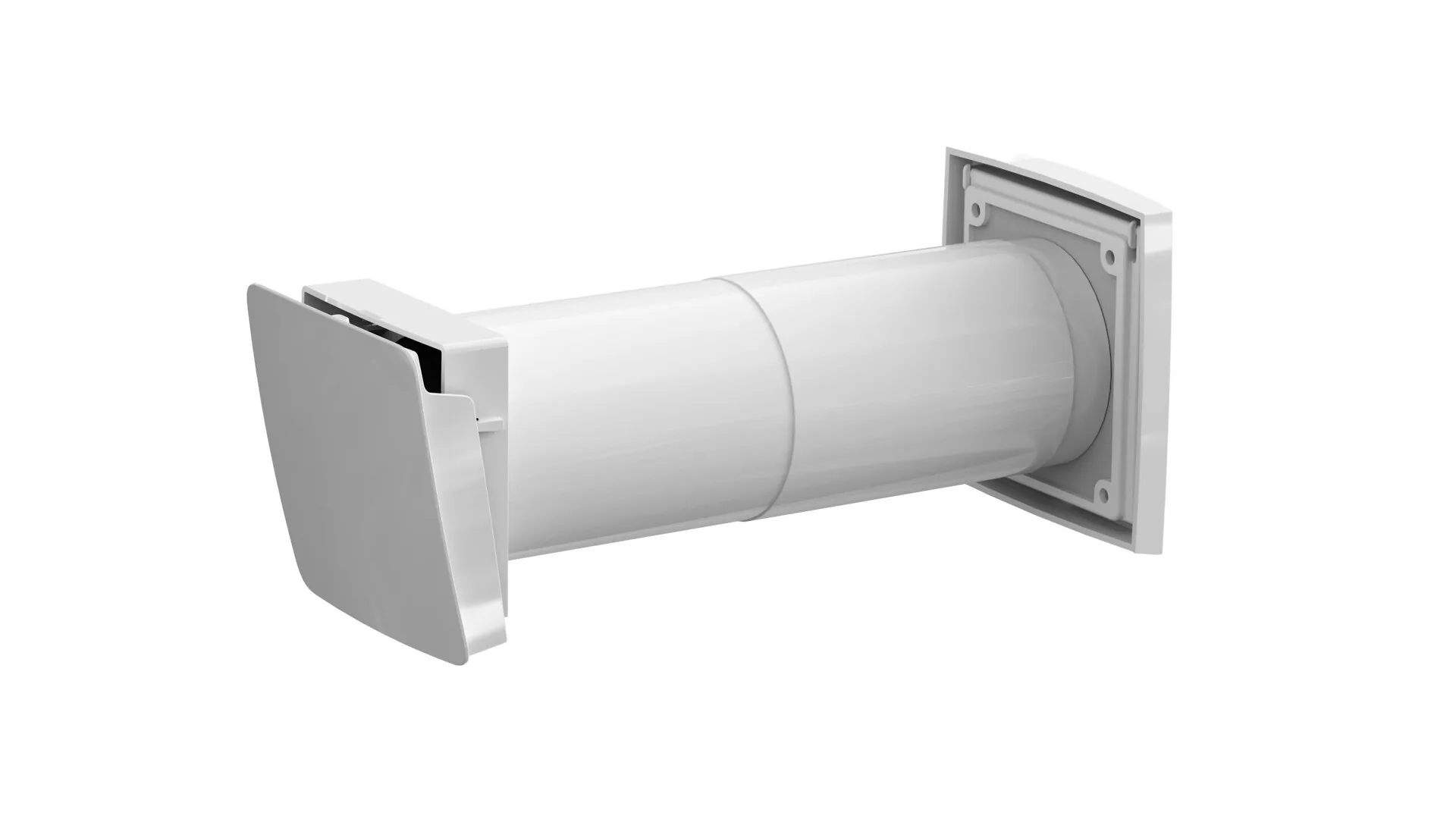

WIVE 100 Air intake valve kit with thermostat

WIVE Supply Air Valve brings fresh air into the space while preventing drafts. The valve can be painted or wallpapered to match the surroundings. It is ideal for spaces with gravity ventilation. The valve can be installed as a replacement for an old valve or as a completely new supply air route. The minimum wall thickness is 255 mm. The series includes a VILPE Multi-function outdoor grille for wall installation. The valve’s thermostat is fully open when the outdoor temperature is +20°C and closes when the outdoor temperature is -5°C. Even when the thermostat is closed, outdoor air will still flow into the space. The interior of the valve cover is equipped with condensation insulation.
Now featuring a new and improved filter (ISO ePM10 75%).

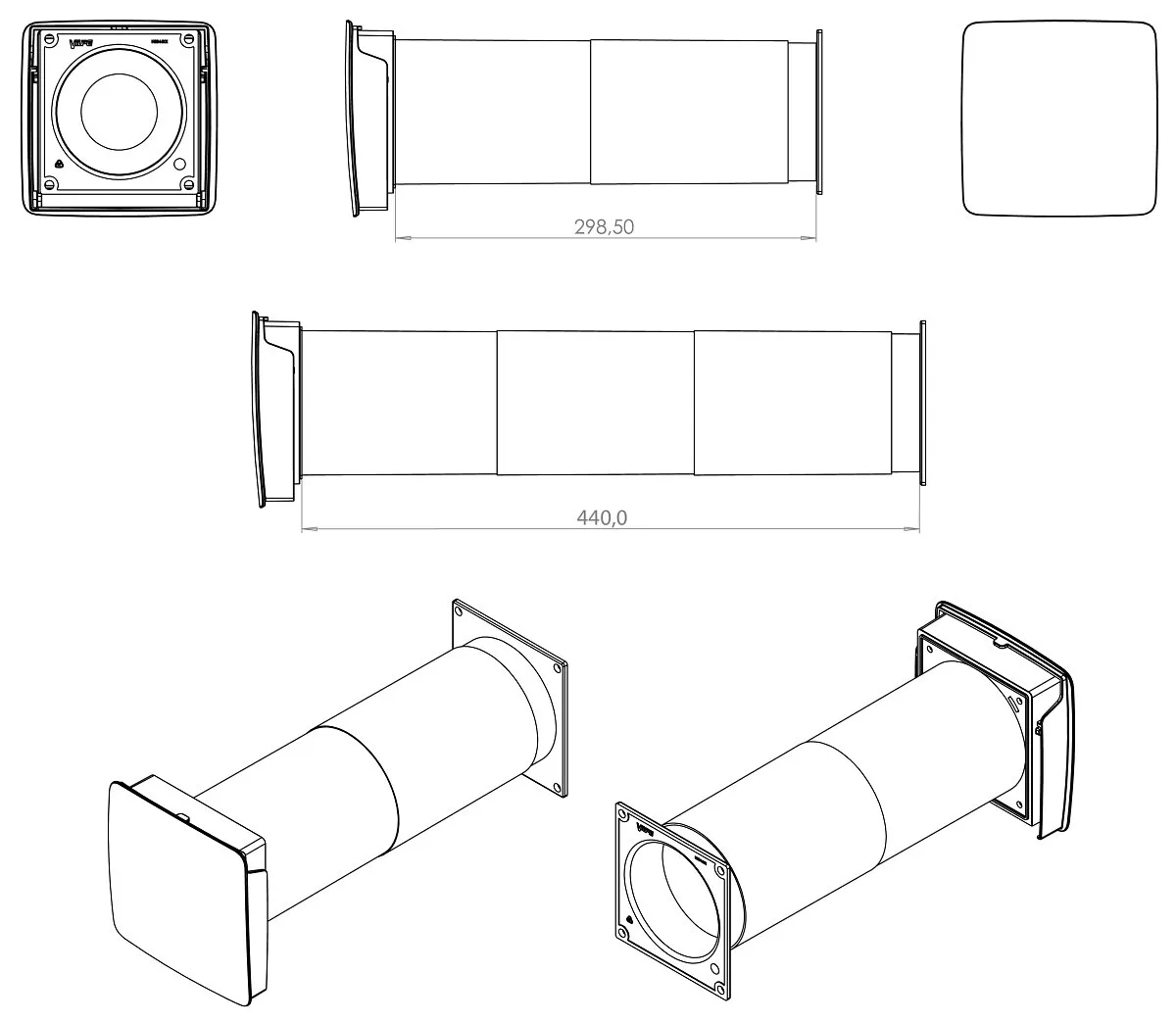

Dimensions: Valve 100 x 100 mm. Total length of pass-through pipes 440 mm, Multi-function outdoor grille 150 x 150 mm.
