Water chamber PVK 600/315/150 R ball float valve

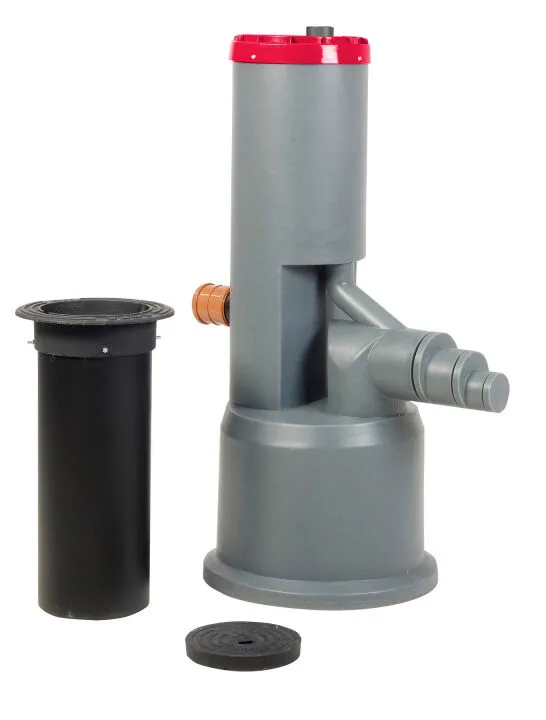

MELTEX 600/315/150 R drainage chamber has a 110 mm inlet with a ball check valve, preventing backflow into the drainage pipe if the water level rises, e.g. due to blockage. The outlet features a water trap and a flushing pipe, and can be opened to 110, 160, or 200 mm depending on requirements. The chamber includes a 150-liter sediment trap and has a total height of 1550 mm.

The package includes a standard 315×750 mm telescopic pipe and a 40-ton cast iron cover. The drainage chamber is also available without the cast iron cover for non-traffic areas, where an RST or lightweight plastic cover can be selected.

Chamber bodies are manufactured at MELTEX’s factories in Kuhmoinen and Keuruu, with assembly at various locations. Primary materials used are polyethylene (PE), polypropylene (PP), and polyvinyl chloride (PVC). MELTEX drainage chambers meet standard SFS 3468 and special instruction EO 343.
