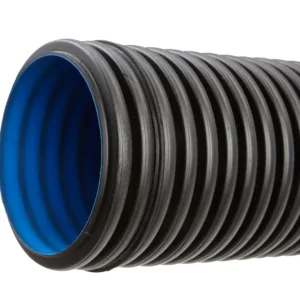

Culvert pipe with sealing 6m SN8
Stormwater pipe for drainage, underpasses, and directing storm or wastewater underground in heavier load areas.
Product options
SV-putki 110/93mm x 6m SN8 tiivisteellä
| Product code | 100150 |
|---|---|
| HVAC number | 2513341 |
| Package size | 50 |
SV-putki 160/136mm x 6m SN8 tiivisteellä
| Product code | 100155 |
|---|---|
| HVAC number | 2513342 |
| Package size | 26 |
SV-putki 200/172mm x 6m SN8 tiivisteellä
| Product code | 100160 |
|---|---|
| HVAC number | 2513343 |
| Package size | 18 |
SV-putki 250/214mm x 6m SN8 tiivisteellä
| Product code | 100165 |
|---|---|
| HVAC number | 2513344 |
| Package size | 11 |
SV-putki 315/272mm x 6m SN8 tiivisteellä
| Product code | 100170 |
|---|---|
| HVAC number | 2513345 |
| Package size | 8 |
SV-putki 400/346mm x 6m SN8 tiivisteellä
| Product code | 100175 |
|---|---|
| HVAC number | 2513346 |
| Package size | 6 |
SV-putki 450/400mm x 6m SN8 tiivisteellä
| Product code | 100180 |
|---|---|
| HVAC number | 2513347 |
| Package size | 6 |
SV-putki 560/500mm x 6m SN8 tiivisteellä
| Product code | 100185 |
|---|---|
| HVAC number | 2513348 |
| Package size | 4 |
SV-putki 670/600mm x 6m SN8 tiivisteellä
| Product code | 100190 |
|---|---|
| HVAC number | 2513349 |
| Package size | 2 |
SV-putki 900/800mm x 6m SN8 tiivisteellä
| Product code | 100195 |
|---|---|
| HVAC number | 2513350 |
| Package size | 1 |
Product details
Stormwater pipe for drainage, underpasses, and directing storm or wastewater underground in heavier load areas.

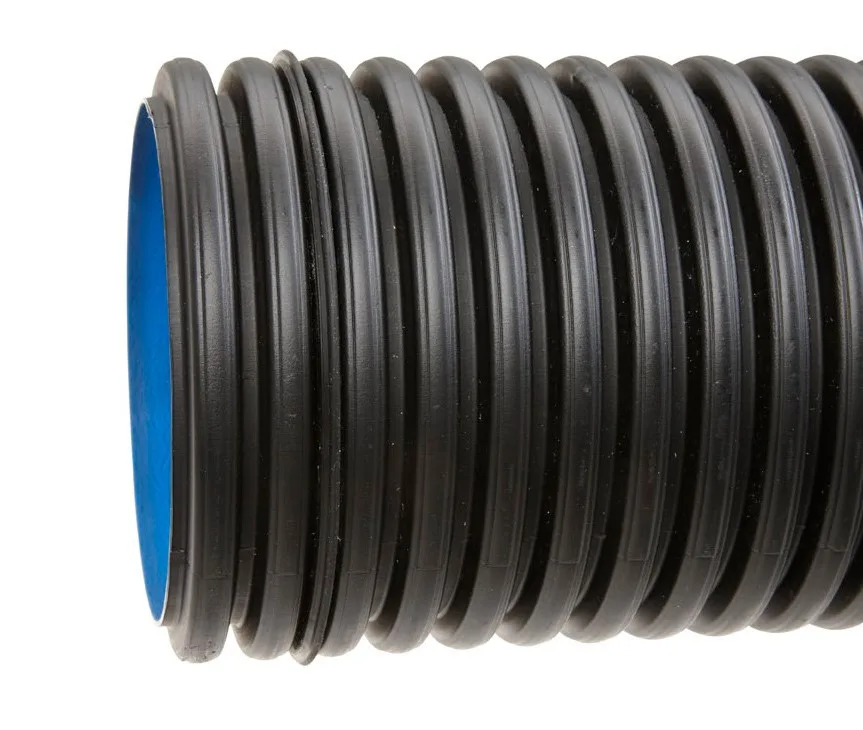

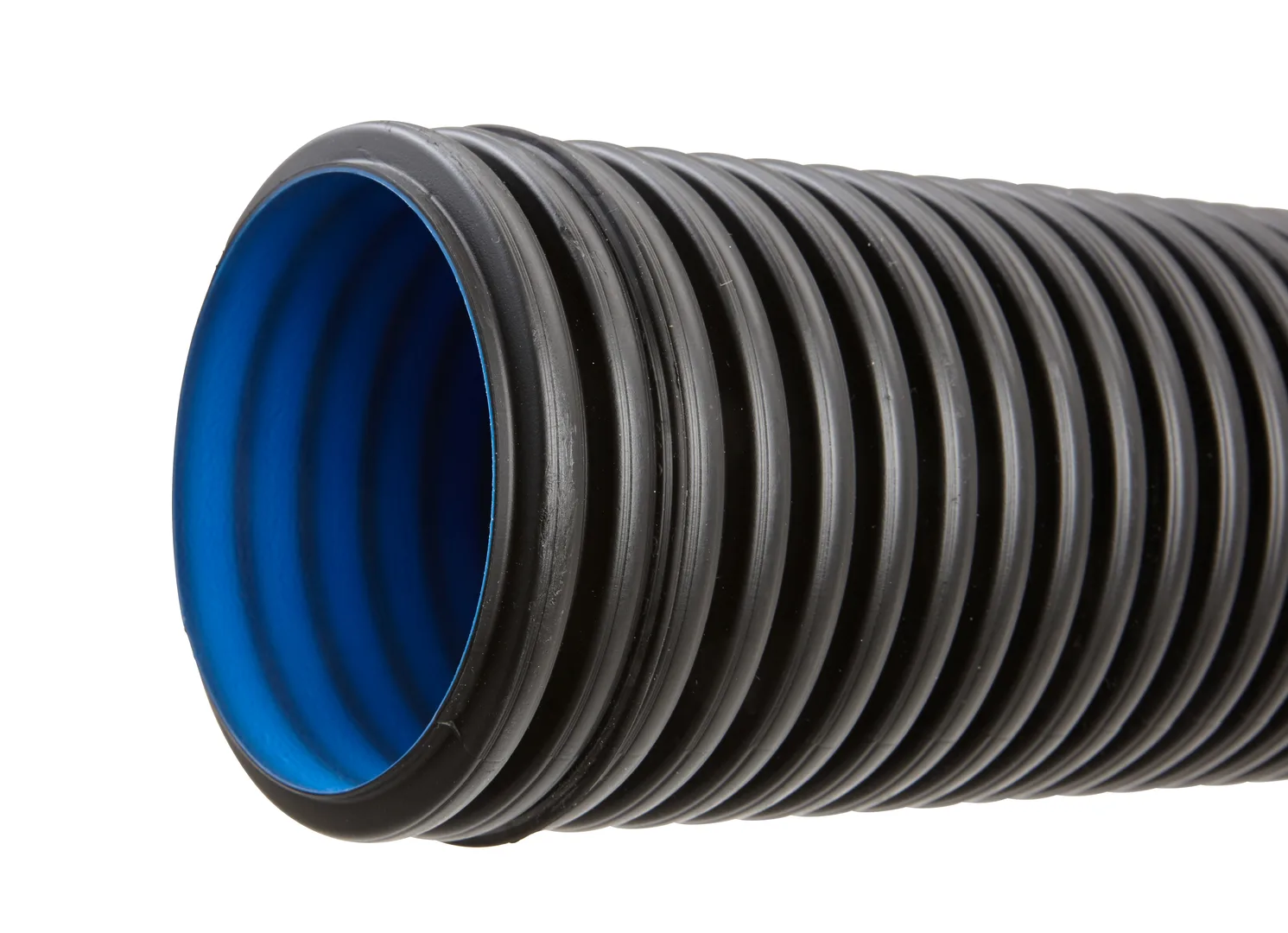

The stormwater pipe is a so-called double pipe, with a corrugated outer surface and a smooth inner surface. The stormwater pipe also features a seal. Pipes in the SN8 strength class are suitable for traffic areas, road construction, and other heavily loaded areas. Smaller sizes are used to direct stormwater from properties, from gutters to base water collection, as well as for technical drainage around buildings. Larger sizes are used in municipal engineering to manage runoff and stormwater.
MELTEX manufactures stormwater pipes in accordance with the SFS 3453 standard, and they meet the quality requirements of RIL 128-2002. The stormwater pipes are made from durable polyethylene.
| Usage length | 6 m |
|---|---|
| Material | polyethylene |
| Material quality | HDPE |
| Ring stiffness | SN8 |
| Color | black |
| External surface color | black |
| Internal surface color | blue |
| Breaking elongation | min. 300% |
| Usage unit | m |
| Customs tariff number | 39172110 |
| ETIM group | EG015530 |
| Conversion factor | 6 |
| ETIM class | EC010339 |
| Building 2000 class | 142.1 |
| Standard | SFS 3453 |
| Package type | frame |
|---|
- VMV_Rumpu-ja-tuplasadevesiputket-110-900-mm-vaatimustenmukaisuusvakuutus.pdf (220 kt) Open Download
- VMV_Sadevesiputket-SN8-110-400mm-vaatimustenmukaisuusvakuutus.pdf (54 kt) Open Download
- VMV_Sadevesiputket-SN8-315-900mm-vaatimustenmukaisuusvakuutus.pdf (105 kt) Open Download
