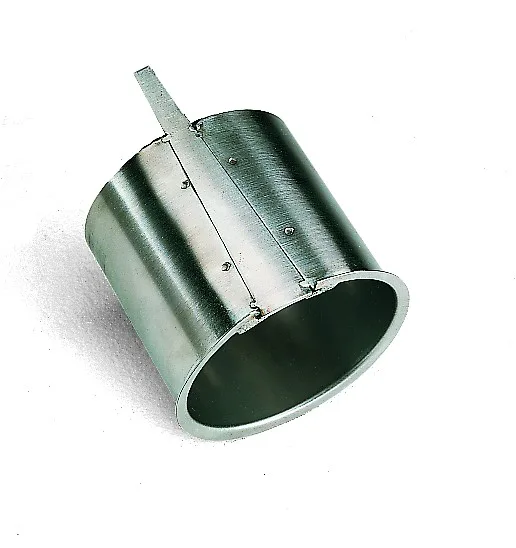

Support sleeve AVK for PE pipe
AVK support sleeves are made of stainless steel (AISI 304) and are designed for use in joints of SDR 17 class PE pipes (polyethylene pipes) to ensure the mechanical strength, tightness, and long service life of
Product options
Support sleeve 63×3.8 SDR17 stainless steel with w
| Product code | 450620 |
|---|---|
| HVAC number | 1984523 |
| Package size | 1 pcs |
Support sleeve 75×4.5 SDR17 stainless steel with w
| Product code | 450622 |
|---|---|
| HVAC number | 1984524 |
| Package size | 1 pcs |
Support sleeve 90×5.4 SDR17 stainless steel with w
| Product code | 450624 |
|---|---|
| HVAC number | 1984525 |
| Package size | 1 pcs |
Support sleeve 110×6.6 SDR17 stainless steel with
| Product code | 450270 |
|---|---|
| HVAC number | 1984526 |
| Package size | 1 pcs |
Support sleeve 125×7.4 SDR17 stainless steel with
| Product code | 450271 |
|---|---|
| HVAC number | 1984527 |
| Package size | 1 pcs |
Support sleeve 160×9.5 SDR17 stainless steel with
| Product code | 450275 |
|---|---|
| HVAC number | 1984528 |
| Package size | 1 pcs |
Support sleeve 200×11.9 SDR17 stainless steel with
| Product code | 450280 |
|---|---|
| HVAC number | 1984529 |
| Package size | 1 pcs |
Support sleeve 225×13.4 SDR17 stainless steel with
| Product code | 450626 |
|---|---|
| HVAC number | 1984530 |
| Package size | 1 pcs |
Support sleeve 250×14.8 SDR17 stainless steel with
| Product code | 450628 |
|---|---|
| HVAC number | 1984531 |
| Package size | 1 pcs |
Support sleeve 315×18.7 SDR17 stainless steel with
| Product code | 450629 |
|---|---|
| HVAC number | 1984533 |
| Package size | 1 pcs |
Product details
AVK support sleeves for PE pipe SDR 17
AVK support sleeves are made of stainless steel (AISI 304) and are designed for use in joints of SDR 17 class PE pipes (polyethylene pipes) to ensure the mechanical strength, tightness, and long service life of the connection.
The support sleeve is installed inside the pipe at the joint, where it supports the pipe structure and prevents deformation during tightening and operation.
The support sleeve increases the tensile strength of the joint and prevents the pipe from detaching from the connection under pressure or external loads.
| Material | stainless steel |
|---|---|
| Material quality | AISI 304 |
| Pressure class | PN10 |
| SDR number | SDR17 |
| Color | stainless steel |
| Usage unit | pcs |
| Customs tariff number | 84818061 |
| Package type | pc |
|---|
